Supplies emulsion for liquid and solid abrasive pastes

Supplies emulsion

We offer various accessories that can be used for dosing our emulsion abrasive pastes. All products are also compatible for the distribution and dosing of all emulsion abrasive pastes on the market.

HDP Gun

Vista di una pistola per emulosione Alchem, un accessorio per emulsione di paste abrasive liquide e solide

Data sheet

Compressed air for the gun:

4 – 8 bar

Compressed air for the paste tank:

6 bar

Air supply tube diameter:

mm. 6

3-way valve:

r’ ¼

Gun dosages:

0.5 – 4 gr.

Transmission ratio of the motor:

0.5 mq/h

Downloads

ESPLOSO PISTOLA HDP (pdf - 796.65 KB)

HDP II Gun

Data sheet

Air Pressure:

70/90 psi

Compound Pressure:

50 / 90 psi

Quantity per Shot:

0,2 / 3 cm3

Tube out diameter A = Air:

3/8″

Tube out diameter C = Compound:

1/2″

Downloads

ESPLOSO PISTOLA ALCH15 (pdf - 749.17 KB)

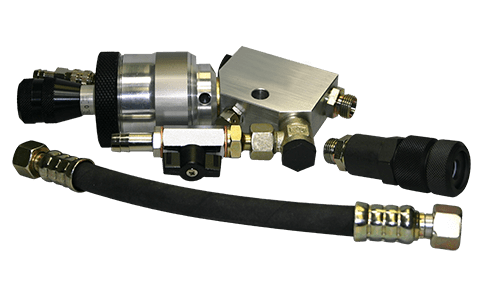

Wido Spray Gun

Vista pistola Wido Spray, accessorio per emulsione Alchem

Data sheet

Compressed air for the gun:

5 – 6 bar

Compressed air for the pressurized tank:

6 bar

Compressed air hose for gun control:

Ø 10 internal

Hose for abrasive connection to the pressurized tank:

Ø 13 internal

3-way valve:

R ¼”

Minimum nominal air passage diameter:

6 mm

Gun dosing:

0,2 – 6 cm³

Gun air consumption:

ca. 0,75 m³/h

Downloads

ESPLOSO PISTOLA WIDO SPRAY (pdf - 34.85 KB)

Alch 15 Guns

Pistola per emulsione Alch 15 prodotta da Alchem

Data sheet

Compressed air for gun:

5 – 6 bar

Compressed air for compound tank:

6 bar

Dmr pipes for air supply:

mm. 10

dmr pipes for compound supply :

mm. 13

3 ways valve:

R’ ¼

Air fow for 3 ways valve:

mm. 6

Gun dosage:

3,5 cm3

Air consumption:

1: 14

And for remoted noozle connected to it :

(UHS15) :

Connection tube:

30cm – 100cm

Available tube rislan:

black high pressure

Downloads

ESPLOSO PISTOLA ALCH15 (pdf - 597.74 KB)

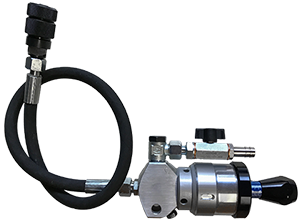

Alch 15 - 1 Remote nozzle

Vista dall'alto di un sistema di prolungamento a un ugello prolungato, un accessorio per emulsione prodotto e venduto da Alchem

Designed when it is necessary to position the gun body on the machine and/or in a convenient position for managing the quantity of paste to be dosed and REMOTE the spray system with nozzle above the cleaning discs.

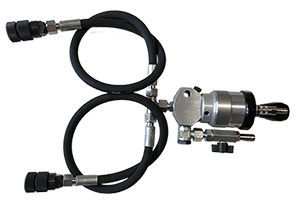

Alch 15 - 2 Remote Nozzles

Vista di una Pompa per la distribuzione della pasta liquida, un accessorio per emulsione prodotto e venduto da Alchem

Designed when it is necessary to position the gun body on the machine and/or in a convenient position for managing the quantity of paste to be dosed and REMOTE TWO spray systems with nozzle above the cleaning discs.

UHS 15

Vista laterale di una Pompa per la distribuzione della pasta liquida, un accessorio per emulsione prodotto e venduto da Alchem

Spray System

Downloads

ESPLOSO PISTOLA ALCH 15 (pdf - 291.90 KB)

No Abrasiv Pomp

Vista di un filtri pulente a cartuccia, un accessorio per emulsione prodotto e venduto da Alchem

Pump for distribution of liquid paste with centralized distribution systems.

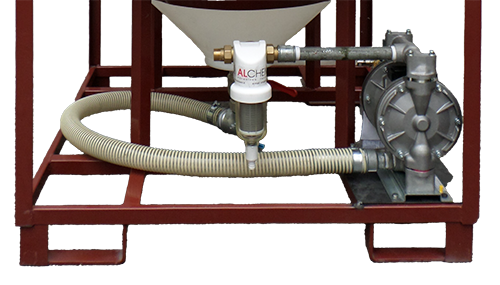

Liquid Pulp Distribution Plant

Vista di fronte di un impianto di distribuzione di pasta liquida, un accessorio per di paste abrasive solide e in emulsione

Liquid abrasive paste dosing system that allows you to work continuously by topping up the tank at any time. The paste is pumped into the distribution pipes to the spray gun. No pressure pressure in the tank.

Filter

Cartridge filters in stainless steel, 500 microns. Suitable for effective filtration of foreign particles.

The stainless steel filter – 500 microns (Mod. MEC 316) ensures:

Precise and durable micrometric filtration as the stainless steel mesh, once molded, remains unchanged over time without undergoing unraveling or deformation.
Superior filtration quality as it retains all impurities.
The stainless steel cartridge of the Mec 316 filter should be periodically cleaned with a counter-current water flow.
