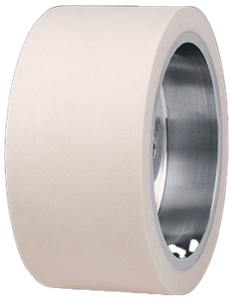

Vulkollan® Convolute Wheels

Description
Vulkollan® Convolute wheels, consist of an aluminum machined hub from piece full or casted and then covered the whole of Vulkollan®.

Sizes
The cover has a height of 20/25 mm and, on request, we can produce Wheels with cover of 40 mm height. We produce 100 mm diameter Wheels up to 500 mm and width from 20 mm up to 150 mm (on request, even over) and with all bores.

Field of use
These wheels are generally used only for dry grinding of all metallic and non-me- tallic materials. Available with hardness Shore A from 20/25, 30/35 and 40/45.

How to use
The choice of hardness is a function of grain size and flexibility of the belt. A belt with a large grained tape (from 60 to 120) shows the maximum hardness while a belt with fine or very fine grained tape (320-400-600) lists the minimum hardness.
